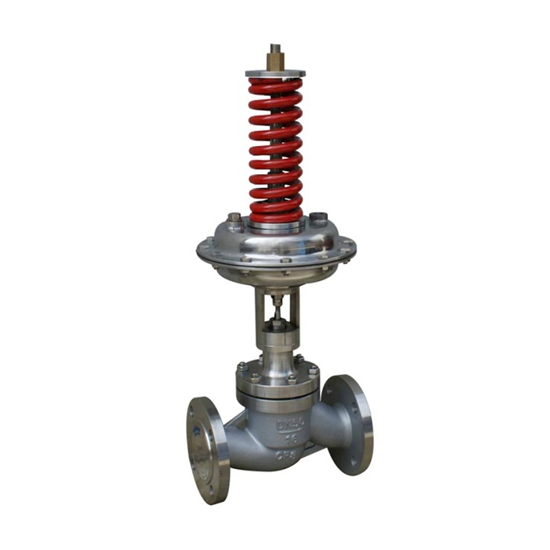

Self regulating valve, ZZYP self regulating valve

關注次數(shù)：

ZZYP self pressure regulating valve is a kind of without external energy, using controlled the media's own energy when the power source, is introduced to perform film chamber to produce thrust, throttle control element to achieve automatic adjustment. Comprehensive function ZZYP control valve has the measurement, implementation, control. Available in no gas, no electric place. Widely used in petroleum, chemical, power, light industry, printing and dyeing industry in the automatic control system of gas, liquid and various equipment steam medium pressure regulator (for deceleration, pressure regulating valve after the pressure relief, pressure) (for the valve before the pressure adjustment automatic control).

ZZYP self pressure regulating valve technical data and dimensions:

Nominal diameter DN（mm）	20				25	32	40	50	65	80	100	125	150	200
Seat diameter DN（mm）	10	12	15	20
The rated flow coefficient Kv	1.8	2.4	4.4	4	11	20	30	48	75	120	190	300	480	760
To allow pressure（MPa）	2.5					2.0			1.6			1.0
Nominal pressure（ MPa）	1.6　4.0　6.4
The inherent flow characteristics	Quick opening
Ensure that transfer the minimum pressure valve work difference P（MPa）	0.05
Pressure segment range （KPa）	15～50　　40～80　　60～100　　80～140　　120～80 160～220　200～260　240～300　280～350　330～400 380～450　430～500　480～560　540～620　600～700 680～800　780～900　800～1000　900～2000
Working temperature ℃	Liquid ≤ 140; gas ≤ 80; with the condenser and heat sink ≤ 350
Suitable for medium	Low viscosity liquid, gas, steam
Flange size, type	PN10, 16, 40GB9113-88, PN64JB/T7-94; PN10, 16 PN40, 64 convex, concave or according to the flange matching other standard types of user requirements (such as: ANSI, JIS, DIN and other standards)
The length of the structure	According to GB12221-89 standard
Can be equipped with accessories	Condenser (for medium for steam occasions), such as heat sinks.
Actuator signal interface	Internal thread M16 * 1.5

公稱通徑(DN)			20	25	32	40	50	65	80	100	125	150	200
L		PN16、40	150	160	180	200	230	290	310	350	400	480	600
		PN64	230	230	260	260	300	340	380	430	500	550	650
B			233		332		373	522		673	980		1200
H	壓力調節(jié) 范圍 MPa	15～140	475		520		540	710		780	840	880	915
		120～300	455		500		520	690		760	800	870	880
		280～500	450		490		510	680		750	790	860	870
		480～1000	445		480			670		740	780	850	860
		600～1500	445		570		600	820		890	950	950	1000
		1000～2500	445		570		600	820		890	950	950	1000
A	壓力調節(jié) 范圍 MPa	15～140	φ282		φ308
		120～300	φ232
		280～1000	φ196					φ196			φ282
		600～2500	φ85	φ96
大約重量（Kg）			26		37		42	72	90	114	130	144	180
導壓管接口螺紋			M16×15
