Outline

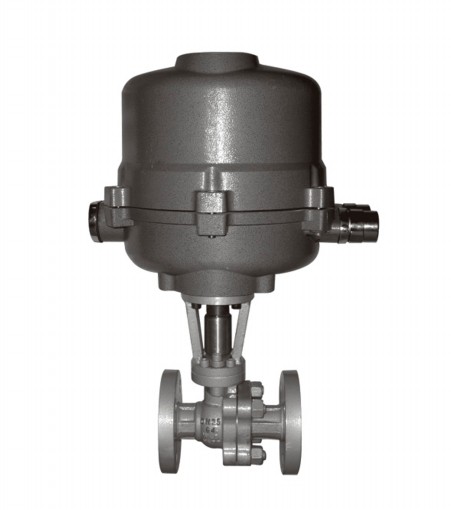

ZDRO series of electric 0-off ball valve electric actuator and ball valve type 0 DN15 ~ 200 floating ball, DN250 ~ 300 is fixed ball structure.
The valve compact structure, small size, light weight, easy assembly and disassembly maintenance, flow through Young, small flow resistance, good sealing performance. The seat is flexible lip structure, with automatic wear compensation and relief role in the cavity, and therefore reliable sealing and long service life.
Widely used in petroleum, chemical, electric power, metallurgy, steel, paper, pharmaceutical, food, textile, light industry and other industries.

Technical parameters and performance
Body

Valve components

Executive body

Body, trim material combinations and standard temperature range
R.TFE (F): two molybdenum reinforced PTFE
R.TFE (C): Carbon fiber reinforced PTFE
HCr: hard chrome plating
S.S: part surfacing Stellite

Structure

Actuator configuration, allowing the pressure

Dimensions

Unit：mm

Ordering Information
Please fill out when ordering "specifications" or indicate the following:
First, if the order has not been pre-selected models, please provide us your parameters
1, nominal diameter, rated flow coefficient Kv
2, fluid properties (including nominal pressure, temperature, viscosity or pH)
3, a valve in the form of (power - off type or electric - open)
4, the flow characteristics
5, before the valve, the valve pressure
6, valve, valve material
7, the input signal
8, with an attachment, annex models, so that we can correct for your selection.
Second, the special requirements
A special inspection
2, fully to oil, to water treatment;
3, cut copper processing;
4, a special interface, the pipe;
5, under vacuum conditions;
6, designated coating color
7, special media (oxygen, chlorine, hydrogen);
8, the use of stainless steel fittings;
Third, if the company has been selected by the design of the product model, please order directly from our sales department by model.
Please try to provide design drawings and detailed parameters by our experts for your audit checks.
